Advantage:
The SONY HD network control interface Board ,it is designed for
SONY FCB HD camera module, it can compatible and control SONY
FCB-EH3410,FCB-EH3310,FCB-EH3150,FCB-EH6300,FCB-EH6500,FCB-EV7500,FCB-EV5500,FCB-EV7100,FCB-EV7300,FCB-EV7310,FCB-EV5300
and so on camera block . This control board is widely applied to
security, smart transport flight equipment and video conferencing,
and other fields.
It is one of the low cost plan PTZ by SD to HD alternatives .

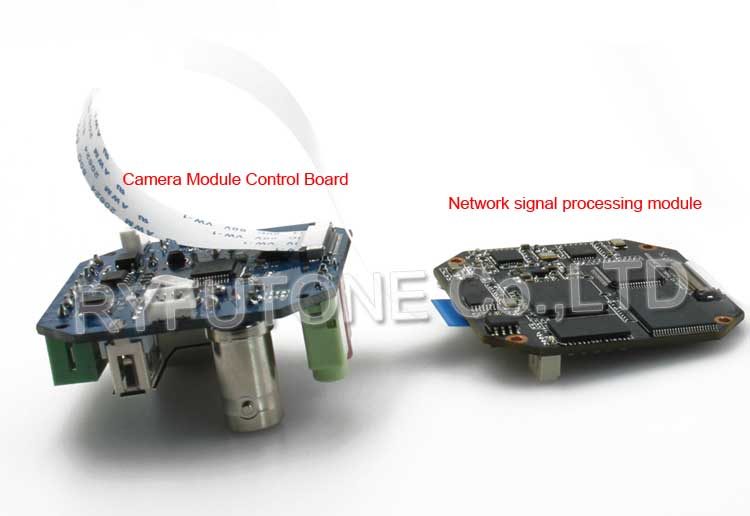

This control panel set have two PCB boards, one for network signal
processing modules, one for the HD camera module control interface
board.
Specification:
1.Adoption of HD integrated LVDS line access SONY FCB camera
module, without any settings to the movement, you can automatically
identify displays HD signals. Using high-performance, powerful
programmable media TI DaVinci 368 processor, optimized H.264
compression algorithm implemented on the narrow-band
high-definition image transmission, support 10-bit simultaneous
users, supports ONVIF 2.0 protocol, management of centres providing
free software client to facilitate management.

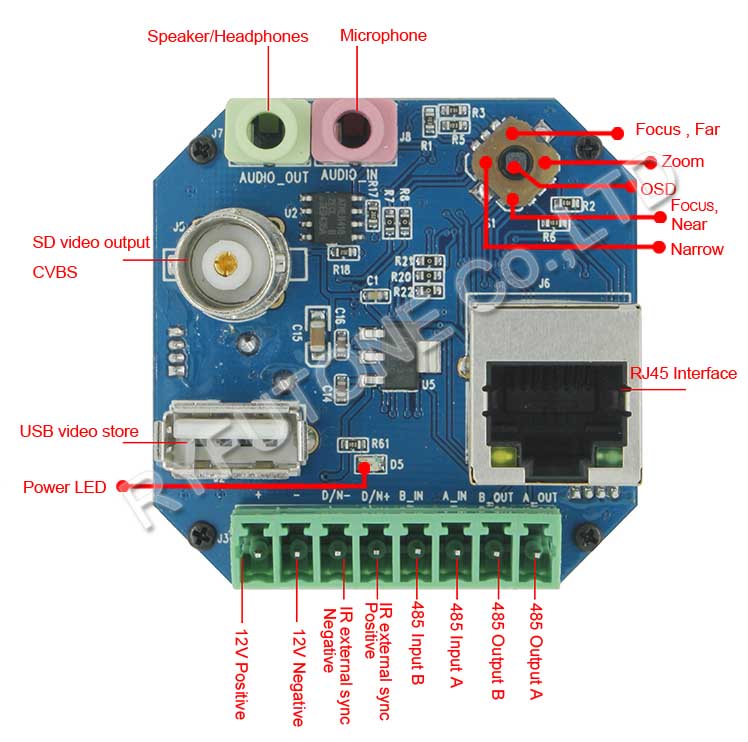

2.Through the buttons or IE, 485 control keyboard call up OSD menu,
easy to set the technical parameters of the core module and save
the parameter value. By 485 output port can control PTZ or ball up
and down, left and right rotation.
3.This control panel can synchronize the output standard definition
CVBS signal.
4.Outside connections infrared light, and infrared light
synchronous interface, through cmaera module of the parameter
setting, avoid cannot synchronize with the infrared light color to
black.
5.Support RS485 control, automatic identification of
PELCO-D,PELCO-P agreement, Potter is 9600bps, address 1 .
6.Support power off memory function, when a camera module parameter
setting saved, after the power of the camera module, no need to set
the parameters of the camera module.
7.Unique 10 presets and auto cruise function, cruising time of
5----999 seconds. (Optional).
8.Support for SONY, VISCA Protocol of camera module and Samsung HD
camera.
9. Size:48MM*48MM*23MM (Contains network RJ45 socket height)
