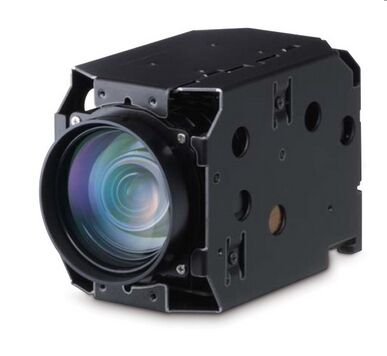

Hitachi DI-SC120R 30x HD Zoom Blocks Module Camera

The Hitachi DI-SC120R camera employs a 1/3" CCD sensor that outputs a 1280x720 high definition image. A number of advanced processing features are built into the DI-SC120R such as defog, image stabilization and wide dynamic range. Together with the 30x optical zoom lens, this ensures that this chassis camera performs in a wide range of surveillance and monitoring applications.

HD Hitachi DI-SC120R Features:

* High Definition with 30x Optical Zoom Lens
* High-Speed Auto-Focus
* Defog real-time image processing
* Electronic Image Stabilisation
* Wide dynamic range
* Low illumination technology
* Remote Control through RS-232C

Applications:

* Surveillance - In corporate, medical, learning institutes and other public places, security camera solutions offer peace of mind.
* Traffic Management - Monitoring and responding to ongoing road activity in residential and business areas.
* In Car Video - Hybrid use of a camera used in a vehicle.
* Telepresence - Conference type solutions in business or learning institutions.
* Low Vision Magnifier - Video technology for sight impaired individuals.

HD Hitachi DI-SC120R Specifications:

* Optical Zoom: 30X
* Digital Zoom: 2x
* Focus: Auto/Manual
* Practical F-value: f=4.4 ~ 132mm
* F-value: F1.4
* Practical H angle: 62.9 deg ~ 2.2 deg
* Image Sensor: Type (1/3) CCD Progressive Scan / Ex-View
* Effective Pixels: 1296 x 736
* Output Pixels / Frame Rate: 1280 x 720p / 30fps, 25fps
* DSP: DSP8 & FPGA
* Horizontal Resolution: 600 TVL (typical) 720p mode
* Luminance S/N ratio: ---
* Video Output - Analog: ---
* Video Output - Digital: 16-bit YUV Parallel (REC601) format
* Frame Putput mode: ---
* Sync System: Internal
* Defog: Auto/Manual
* Enhanced Intensity: ---
* EIS (Electronic Image Stabilization): Yes
* Min. Sensitivity: 1.5 lx
* Communication Protocol: EAP/AFP
* IR Cut Filter Removable: Yes
* Wide Dynamic Range: Dual shutter-speed method / contrast offset
* FNR (Frame Noise Reduction): Auto/Manual
* Motion Detection: 64 zones
* Motion Tracking: Detected Motion Vector Available
* Image Reverse (H & V Invert): Yes
* Image Mirror (H Invert): Yes
* Image Vertical Invert: Yes
* Image Freeze: Yes
* Dynamic White Spot Compensation: Yes (automatic)
* Electrical Shutter: Yes (Auto/Manual)
* Backlight Compensation: Yes
* AGC: up to 30dB
* Digital Slow Shutter: up to 1/4 sec
* White Balance: Auto/Manual
* Slow Auto Exposure Mode: x1 ~ x254
* Pricacy Masking: 3D mode: 8 zone
* Communication Method & Speed: 3.3V RS-232C 4800 ~ 57600 bps
* Internal Preset Store (max): 111
* Operating Temperature: -10 deg C ~ +60 deg C
* Operating Humidity: 10% ` 90%
* Storage Temperature: -20 deg C ~ +60 deg C
* Storage Humidity: 0% ~ 95%
* Supplied Voltage: DC9V ~ 12V +_ 0.5V
* Power Consumption - active: 5.9W (25 deg C) Max Motors
* Power Consumption - inactive: 3.0W (25 deg C) Max Motors
* Dimensions: W50 x H60 X D89.5 (mm)
* Weight: 260 g
