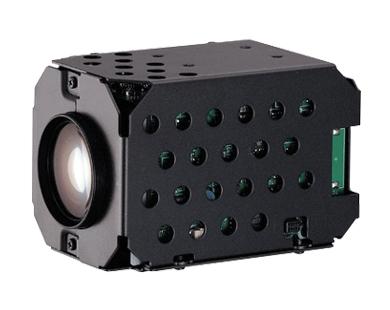

CNB-VP800 26X ICR OSD 26X Sony Color CCD Camera

CNB-VP800 Highlights:

* 1/4" SONY Super HAD CCD
* Built*in Auto Focus/Auto Iris
* 26x Optical Power Zoom Lens
* 10x Digital Zoom (260x Zoom)
* Day & Night (ICR)
* OSD (On Screen Display)
* RS-232C TTL Interface

CNB-VP800 Specifications:

Model	VN800	VP800
Signal System	NTSC : 525 Lines	PAL : 525 Lines
Scanning System	2:1 Interlace
Scanning Frequency(H)	15.734 KHz	15.625kHz
Scanning Frequency(V)	59.94 Hz	50Hz
Image Sensor	1/4 inch SONY Super HAD CCD
Total Pixels Number	811(H) x 508 (V) 410K	795(H) x 596(V) 470K
Effective Pixels Number	768(H) x 494 (V) 380K	752(H) x 582 (V) 440K
Horizontal Resolution	Horizontal : 480 TV Lines
Video Output Level	1.0 Vp-p (75 Ohms, Composite)
S/N Ratio	More Than 48dB (AGC Off)
Digital Zoom Ratio	10x (Total Zoom Ratio : 260x), 2x ~ 10x Variable
Lens	26x Optical Zoom (F1.6, f=3.5~91.0mm) Video AF
Min. Illumination	1.0 Lux (Color), 0.5 Lux (B/W)
Day & Night System	ICR (Auto/ Day / Night)
OSD Menu	On / Off
Input/Output Connector	9 Pin Flat Cable
Electronic Shutter Speed	1/60 ~ 1/10,000 Sec.	1/50~10,000sec
Power Voltage	DC 9V ~ 15V (Recommendation DC12±0.5V)
Power Consumption	Max. 4.2W / 350mA
Dimensions	50.5(W) x 61.1(H) x 92.25(D) mm
Weight (Net)	Approx. 300g
