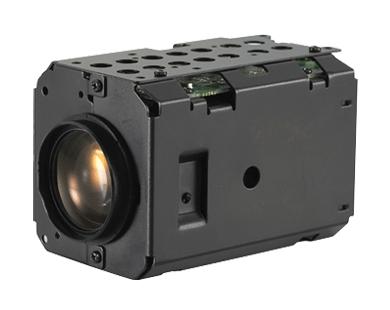

CNB VP200 22X Zoom Camera 1/4 SONY CCD Camera

Product Categories

Ryfutone Co., LTD

Contact Now

CNB VP200 22X Zoom Camera 1/4 SONY CCD Camera

Ask Lasest Price
Brand Name :	cnb
Delivery Time :	3days
Payment Terms :	T/T or PAYPAL

Add to Cart

Product Details
Company Profile

CNB VP200 22X Zoom Camera 1/4 SONY CCD Camera

CNB VP200 CCD Camera Highlights:

* 1/4" SONY Super HAD CCD
* Built*in Auto Focus/Auto Iris
* 22x Optical Power Zoom Lens
* 10x Digital Zoom (220x Zoom)
* OSD (On Screen Display)
* RS*232C TTL Interface

CNB VP200 CCD Camera Specifications:

Model	VN200	VP200
Signal System	NTSC	PAL
Scanning System	2:1 interlace
Scanning Frequency(H)	15.734kHz	15.625kHz
Scanning Frequency(V)	59.94Hz	50Hz
Image Sensor	1/4 inch Interline Transfer SONY Super HAD CCD
Sync. System	Internal/External(Line Lock, VD Lock)
Total Pixels Number	811(H) x 508(V) 410K	795(H) x 596(V) 470K
Effective Pixels Number	768(H) x 494(V) 380K	752(H) x 582 (V) 440K
Horizontal Resolution	480 TV lines
Video Output Level	1.0 Vp-p (75, composite)
S/N Ratio	More Than 48dB (AGC Off)
Digital Zoom Ratio	10x (Total Zoom Ratio : 220x), 2x ~ 10x Variable
Lens	22x Optical Zoom (F1.6, f=3.9~85.8mm) Video AF
Min. Illumination	1.0lx (30IRE)
Zoom/Focus Preset	64 Mode Set (Store Internal EEPROOM)
OSD Menu	On / Off
Color / BW	On / Off
Sharpness Control	Manual (Up ~ Down)
Focus Mode	Auto / Manual
Brightness Control	Manual (Up ~ Down)
Input/Output Connector	9 Pin Flat Cable
Electronic Shutter Speed	1/60 ~ 1/10,000 Sec. (8 steps)	1/50 ~ 1/10,000 Sec. (8 steps)
Power Voltage	DC 9V ~ 15V (Recommendation DC12±0.5V)
Power Consumption	Max. 4.2W / 350mA
Dimensions	49.2(W) x 53.2(H) x 86.6(D) mm
Weight (Net)	Max. 4.2W / 350mA
