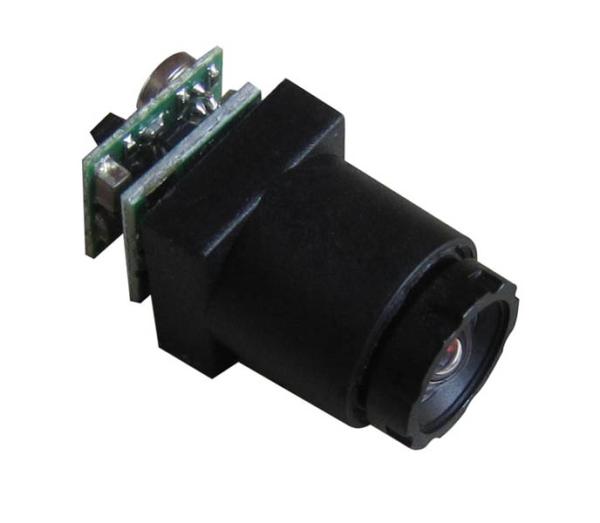

0.008Lux 520TVL Mini CCTV Camera 90degree view angle with audio

Features:
It's anultra small high definition CCTV camera with excellent night vision.
Size is 10.5X11.5X17.5mmonly,Weight is 1g! Very easy to install and conceal.
Minimum illumination is 0.008lux, which canview clearly in almost complete darkness.
90degree wide view angleprovides broad surveillance field.
Full TV system. Applicable worldwide.

Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.
Ready AV/BNC cable and power supply cable. Just plug & play!
0.008Lux 520TVL Mini CCTV Camera 90degree view angle with audio
Outline Size:

0.008Lux 520TVL Mini CCTV Camera 90degree view angle with audio

Specificaiton:

PICK UP ELEMENT	Single chip 1/3 CMOS
SYSTEM	NTSC	PAL
NUMBER OF PIXEL	NTSC：656（H）×492（V）	PAL：786（H）×576（V）
IMAGE SIGNAL PROCESS	Digital Signal Processing System
SENSOR DIMENSION	4.75mm（H）×3.55mm（V）
HORIZONTAL RESOLUTION	Approximately 520TV Lines
SCANNING SYSTEM	2：1 Interlace
SENSITIVITY	0.008Lux/F1.2
LENS & VIEW ANGLE	0.5mm F2.0 /90 °
S/N RATIO	52dB
ELECTRONIC SHUTTER	OUT （1/60 S TO 1/100000 S）	OUT （1/50 S TO 1/100000）S
AUTO GAIN CONTROL	OUT
WHITE BALANCE CONTROL	OUT
BACK LIGHT COMPENSATION	OUT
VIDEO OUT	1.0V p-p/75ohm
SIZE (L x W x H)	10.5x10.5x17.5mm
WEIGHT	2g
WORK CURRENT	70mA
POWER REQUIREMENT	DC 3.6V-24V
OPERATING TEMPERATURE	- 10° C ~ +50°C ，less than 90% RH
Connection	PIN1- Red DC5V PIN2- Black GND PIN3- Yellow VIDEO OUT

Contents:
* Mini camera X1;
* RCA/BNC cableX1;
* AC adapter X1
