Small Watec WAT-902H2 ULTIMATE 1/2 CCD 570TV Lines B/W CCTV Camera

URL: http://www.accessories-shops.com/watec-cameras/small-watec-wat-902h2-ultimate-1_2-ccd-570tv-lines-b_w-cctv-camera.html

The Watec WAT-902H2 ULTIMATE 1/2" Super High Sensitivity Monochrome Camera offers super high sensitivity (near IR) and high resolution in an ultra compact camera.
For the ULTIMATE models, Watec WAT-902H2 redesigned the base platform of the 902 series cameras to include higher sensitivity, better S/N ratios, more versatile shutter speed control, and fully adjustable camera functions--including manual gain control and manual back-light compensation.

Watec WAT-902H2 Camera Features:

* 1/2" IT CCD
* Resolution: 570 TVL
* Min. Illumination: 0.0001 Lux @ F1.4, 0.000033 Lux @ F0.8
* Near IR sensitivity
* Fully adjustable camera functions - MGC and manual BLC
* Auto Iris connection & BNC connection
* Multi-functions: Back light compensation, AGC, shutter speed control, flickerless mode, electronic iris, iris level control
* Compact and Lightweight: 3.5 oz. (98g)
* CS lens mount
* Minimum Illumination (Lux): 0.0003Lux F1.4 (AGC: High),
* Automatic automatic gain control (dB) High :5-50 Low5-32,
* SNR (dB): 46,
* Gradation characteristics: γ ≒ 0.45;
* Watec WAT-902H2 good performance .

Watec WAT-902H2 Specifications:

Model	WAT-902H2 ULTIMATE (EIA)			WAT-902H2 ULTIMATE (CCIR)
Pick-up element	1/2 inch interline transfer CCD image senso
Number of total pixels	811(H) × 508(V)			795(H) × 596(V)
Number of effective pixels	768(H) × 494(V)			752(H) × 582(V)
Unit cell size	8.4μm(H) × 9.8μm(V)			8.6μm(H) × 8.3μm(V)
Synchronizing system	Internal
Scanning system	2:1 interlace
Video output	Composite Video, 1Vp-p, 75ohms, unbalanced
Resolution (H)	570TVL (Center)
Minimum illumination	0.0001lx F1.4
S/N	More than 50dB (AGC=5dB,γ=1.0)
AE mode	Fixed	1/60, 1/100 sec.	1/50, 1/120 sec.
		1/250, 1/500, 1/1000, 1/2000, 1/5000, 1/10000, 1/100000 sec
	EI	1/60 - 1/100000 sec. 1/100 - 1/100000 sec.	1/50 - 1/100000 sec. 1/120 - 1/100000 sec.
AGC	HI: 5 - 60dB / LO: 5 - 32dB
MGC	5 - 60dB
Gamma characteristics	≒0.35(HI) /γ≒0.45(LO) /γ=1.0(OFF)
Lens-iris	Video / DC (EIAJ arrangement, Auto-select)
Back light compensation	ON / OFF
Power supply	DC+12V±10%
Power consumption	1.32W (110mA)
Operating temperature	-10°C-＋40°C
Storage temperature	-30°C-＋70°C
Operating / Storage humidity	Less than 95% RH (Without condensation)
Lens mount	CS mount
Weight	Approx. 98g

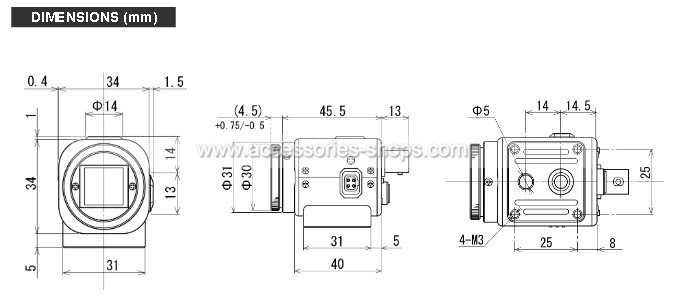

SizeW×H×L(mm)	35.5×36×58
