0.0Lux 520TVL Mini SPY CCTV 6 IR LEDs Audio IR Camera

Usage
1) CCTV cameras can be used directly with a standard TV/VCR or RCA video monitor;
2) To view more than one CCTV camera on your TV/VCR you will need a quad or multiplexer;
3) To view on your computer or laptop you will need a DVR card or USB;
4) A standalone system that records is a standalone DVR;
5) CCTV wired cameras can add a 2.4GHz wireless transmitter module,then it can work with wireless receivers;

0.0Lux 520TVL Mini SPY CCTV 6 IR LEDs Audio IR Camera

Features :
Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.

It's an ultra small high definition CCTV camera with excellent night vision.
Size is 14.5 x 14.5 x 15.5mm only, Weight is 3g! Very easy to install and conceal.
Minimum illumination is 0.0lux, which can view clearly in almost complete darkness.
Full TV system. Applicable worldwide.

Specification:

PICK UP ELEMENT	Single chip 1/3 CMOS
SYSTEM	NTSC	PAL
NUMBER OF PIXEL	NTSC:656(H)×492(V)	PAL:786(H)×576(V)
IMAGE SIGNAL PROCESS	Digital Signal Processing System
SENSOR DIMENSION	4.75mm(H)×3.55mm(V)
HORIZONTAL RESOLUTION	Approximately 520TV Lines
SCANNING SYSTEM	2：1 Interlace
SENSITIVITY	0.00Lux/5M (IR OPEN)
LENS & VIEW ANGLE	55 °
S/N RATIO	52dB
ELECTRONIC SHUTTER	OUT (1/60 S TO 1/100000 S)	OUT (1/50 S TO 1/100000)S
AUTO GAIN CONTROL	OUT
WHITE BALANCE CONTROL	OUT
BACK LIGHT COMPENSATION	OUT
VIDEO OUT	1.0V p-p/75ohm
SIZE (L x D)	14.5 x 14.5 x 15.5mm
WEIGHT	3g
WORK CURRENT	IR on 200mA
POWER REQUIREMENT	DC 5.0V
OPERATING TEMPERATURE	- 10° C ~ +50°C ，less than 90% RH
Connection	PIN1- Red DC5V PIN2- Black GND PIN3- Yellow VIDEO OUT

Contents:
Mini camera X 1;

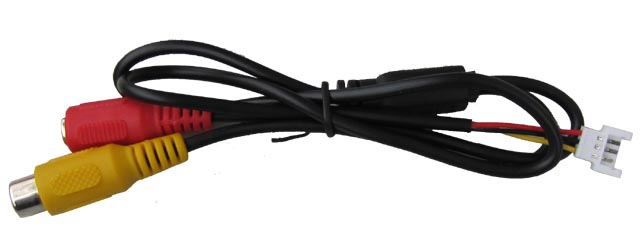

RCA/BNC cable X 1;
AC adapter X 1
