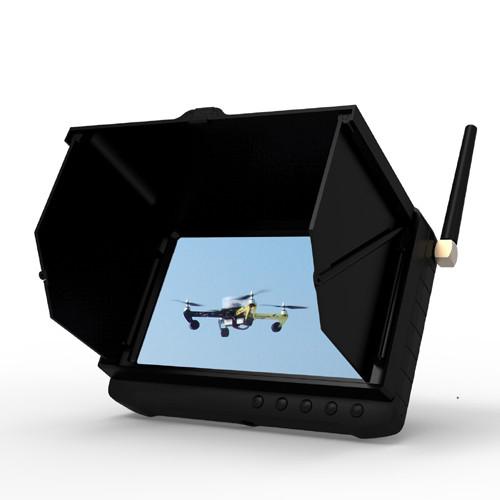

2.4GHz 8CHS Sun Shield Wireless Mini Monitor Camera 5inch DVR

2.4Ghz 8chs wireless mini monitor with sun shield

Feature:

* 5" HD snow Remote control style FPV monitor, no screen,track your plane anytime,don't need to worry about lossing trace for blue screen;
* 8CHS 2.4Ghz wireless receiver ,one monitor for multiple plane with different frequency;
* Press one button , then it begin to scan and lock channels Automically, so easy.
* Support 32GB SD card storage wireless fpv dvr- RC plane black box:record all details and amazing video moment.
* Professinal sunshade +3200mAh battery, 10hous working time ,enjoy your outdoor pleasure flying time.
* Unique outward, simple but Practical, the best 5" portable FPV receiver monitor and dvr all in one.
* Black fpv monitor or white one for optional, perfect match with dji,fatshark remote controller.

2.4Ghz 8chs wireless mini monitor with sun shield

Specifications:

Receiver	2.4Ghz 8CHS -88dB	A1: 2414MHz; A2:2432MHz; A3: 2450MHz; A4:2468MHz. A5:2490MHz; A6:2510MHz; A7: 2390MHz; A8:2370MHz
Receiver	Antenna	RF-SMA 4 Blade
Displayer	Screen size	5 inch LCD screen
	Resolution	800 X 480 Pixel
	Contrast	500:01:00
	Brightness	350 cd/Â©O
Recorder	Storage	TF card 1GB-32GBÂ£Â¨optionalÂ£Â©
	Video compress	MPEG-AVI 30fps
	Language	Multiple
AV IN	TV system	NTSC / PAL (for wired camera)
AV-OUT	Output voltage	3.6-4.2 V
Audio	Frequency	20HZ-20KHz stereo
	Earphone Output	Left:20MW + right 20mW[16O](suit to largest volume)
	Speaker	1W
HD 5-inch LCD Screen	Active area	108mm(W) x 64.8mm(H)
	Resolution	800 x 480 Pixel
	Luminance for LCM	200cd/M2
Video	Resolution	720576/720480
	Video compress	MPEG-AVI 30fps
	Play format	MPEG-AVI
Photo	Format	JPG/JPEG
Storage	External SD card	TF card 1GB-32GB (optional)
	32GB recording time	10-32 hours
	1GB photos	15625pcs
Operating system	PC	Windows & Mac OS
	Port	USB 2.0
	Language	Multiple
Power	Votage	DC 5V
	Current(receiving mode)	600MA
	Current(recording mode)	680MA
	Current( recording with off-screen mode)	340MA
	AC adapter	DC 5V 2A
	Built-in battery	Li-battery 3200Mah
Standby time	Wireless record	≥9.5 hours(off-screen);
Standby time	Wired record	≥12 hours(off-screen);
Sunshade	one button open	Patend LCD hood
Size(LxWxH)	Without sunshade	131 x 90.5 x 18mm
Size(LxWxH)	With sunshade	131 x 90.5 x 28mm
Weight	Without sunshade	215G
Weight	with sunshade	260G
